Design life

Design life in geosynthetics in civil engineering is the expected longevity and performance of synthetic materials. In geotechnical applications, durability is essential to guarantee lifespan and low maintenance. Geosynthetics is one of the most important engineered materials that is utilized to give structural integrity. Geosynthetic bond strength can help structures persist even over a century, making them an excellent option for sustainable building. They are a perfect fit for projects involving the strengthening of bridge abutments, soil reinforcement with geosynthetics, or the prolongation of road life.

Why is design life important in civil engineering?

Design life in geosynthetics is a commitment to building resilient, and sustainable infrastructure due to its bond strength at a budget-friendly price.

  • Durability: The design life of geosynthetics is excellent in its performance in real-world conditions due to its tensile strength. When it is used as a separation layer in roadways it can function effectively for 30-40 years and when applied in asphalt layers, they extend the lifespan of the road by three times.
  • Cost efficiency: Throughout the project, the durability that results from tensile bond strength in geosynthetics contributes a lot to cost savings. Structures reinforced using geosynthetic materials have a lower frequency of costly overhauls and maintenance expenses. They provide long-term durability that can last up to decades and help shorten the installation time, reducing labor costs and thereby less maintenance.

What are the different factors affecting the design life of geosynthetics?

To stand the test of time there are certain factors necessary to be taken into consideration that affect the design life of geosynthetic durability during its installation such as:

  • Environmental conditions: Factors such as UV exposure, temperature fluctuations, and chemical interactions with surrounding soil or water can significantly impact the longevity of geosynthetic materials. Temperature can reach up to 40°C in sun-exposed walls or extreme weather conditions. Soil conditions including saturation, oxygen level and pH affect degradations which have to be looked into during the installation process
  • Mechanical loads: During the installation stage mechanical damage is one of the initial things to be considered. Material with adequate robustness can mitigate the concern mostly. However,  simulated damage tests are essential to assess the loss of strength during the reinforcements. This reduced strength is then factored into the design by applying a reduction factor as per ISO 20432.
  • Creep behaviour: A permanent strain is caused in geosynthetics due to the application of load and this strain keeps on increasing over time and is known as Creep behaviour. The creep testing to measure the creep resistance in geosynthetics is presented by isochronous curves that show load versus strain over time to help determine the maximum load that can be placed for the design.

What are the common applications of geosynthetics with a long design life in civil engineering?

Some of the common applications with a long design life that need durability and cost efficiency are

  • Retaining walls: Design life in geosynthetics for retaining walls provides soil reinforcement that helps in stabilization by enhancing the longevity and strength of the structure of walls. It also helps in preventing landslides by retaining slope stability during heavy rainfall.
  • Road embankments: Long-term geosynthetics applications distribute the load evenly for improving subgrade in road construction. Reduction of the uneven surface increases stability and decreases settlement issues, ensuring safer roads.
  • Erosion control: Geosynthetics are used in applications such as ditches and slopes to prevent soil erosion, employing three-dimensional mats that enhance vegetation growth and improve flow resistance
  • Drainage solutions: Geosynthetics play an indispensable role allowing water to flow away from structures and help to maintain drainage systems and the lifespan of the structures, thereby reducing waterlogging and soil deterioration.

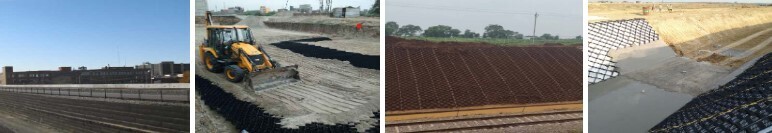

Retaining wall, road embankment, erosion control and drainage solution with a long design life.
Retaining wall, road embankment, erosion control and drainage solution with a long design life.

How to improve the design life of geosynthetics in geotechnical projects

By following these common steps you can easily improve the durability:

  • Material selection: To select the right geosynthetic material, one should take into account factors like mechanical loads, temperature, UV radiation, resistivity, and so on. Because of its superior chemical resistance, HDPE, for example, is a perfect material to use for erosion control and landfill liners. Specialized additives used in HPC to further enhance its durability, such as fly ash, slag, or silica fume, which help to improve its workability and resistance to cracking.
  • Proper installation: Damages that occur during the installation phase can affect the longevity of the structures. Due care should be taken while handling and storage of the geosynthetics to ensure proper installation.
  • Protective measures: There are efficient ways to extend the durability of the geosynthetic design life, such as adding a layer of geotextile over a geomembrane to avoid rupture or covering geosynthetics with dirt to shade them from the sun. The addition of carbon black, UV stabilizers like HALS adds on an extra protective covering on geosynthetics.

In conclusion, adding geosynthetics to civil engineering projects prolongs the lifespan, stabilization, and integrity of structures. The geogrid design life of geosynthetics can be extended to endure for decades by adhering to safety precautions and handling installation correctly making them an ideal choice for civil engineers.
