Fatigue cracking

What is fatigue cracking?

Weariness splitting is a typical type of crumbling in structural materials, especially in asphalt and common buildings. This happens when a material like black-top or cement is exposed to rehashed rounds of stress or strain that bit by bit corrupt its basic uprightness over the long run. Dissimilar to prompt breaks which result from single over-burdens, weakness breaks develop step by step, starting with a material response to fluctuating heaps regularly beneath the extreme strength of the material.



The significance of fatigue breaking in pavement engineering can’t be thought little of as it directly affects durability and safety on roads and bridges. In pavements, tiredness cracking generally appears as interconnected splits that take after an alligator’s skin design, hence normally called gator breaking. These cracks frequently start at the surface or within layers because of traffic loading combined with environmental conditions.



The beginning of weariness cracking is a vital marker for declining health in pavements, which implies support or restoration efforts should be taken. If these splits are not tended to promptly then they may bring about much more serious disappointments like potholes or even total breakdowns prompting expensive fixes being required while additionally representing dangers to road safety.



What causes fatigue cracking?

There are various factors responsible for triggering fatigue cracking; such factors revolve around both environmental conditions and material properties used during construction:

  • Repeated loading: The continuous application of traffic loads, even if they are below the material’s strength threshold, is the most common cause of fatigue cracking. This repeated stress gradually weakens the pavement layers, leading to crack formation.
  • Temperature fluctuations: Frequent expansion and contraction of materials due to temperature variations generate internal stresses that accelerate the initiation of cracks.
  • Material properties: Using low-quality or poorly formulated materials during construction increases the likelihood of fatigue cracking. Materials that lack resistance to environmental changes or mechanical stresses are especially prone to early failure.
  • Inadequate pavement design: Improper pavement thickness or failure to account for expected traffic loads can result in insufficient structural capacity, making the pavement vulnerable to fatigue cracking.
  • Poor drainage: Water infiltration and inadequate drainage can weaken the pavement base and subgrade, contributing to crack development over time.

Types of fatigue cracking

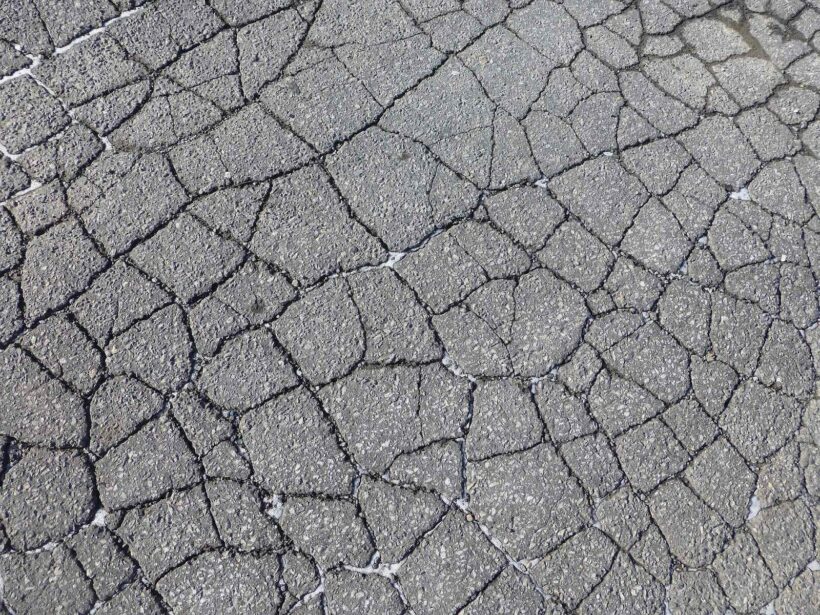

Block cracking occurring as a result of asphalt mixture aging and temperature cycles.
Block cracking occurring as a result of asphalt mixture aging and temperature cycles.

Understanding different types of fatigue cracking can help in diagnosing issues accurately and applying the correct remedial measures:

  • Surface-initiated fatigue cracking: Begins at the pavement surface and works downward. It is often caused by a combination of heavy traffic loads and aging of the surface material.
  • Bottom-up fatigue cracking: It starts beneath the surface course and progresses upwards. This is generally caused by weak lower layers in the pavement structure.
  • Alligator or crocodile cracking: When it comes to alligator or crocodile cracking, many interconnected cracks are forming a pattern similar to an alligator’s skin; this indicates that the surface layer has failed under repeated traffic loading.
  • Block cracking: Block cracking is characterized by large rectangular cracks. This type usually occurs as a result of asphalt mixture aging and temperature cycles.
  • Edge cracking: It takes place along road edges without curbs mostly due to bad drainage or material tapering off at these points.
  • Reflective cracking: This type occurs when existing cracks in an underlying layer propagate through to the new surface layer, often following a resurfacing operation.

How to detect fatigue cracking early?

  • Visual inspections: Regular inspections can help identify early signs of fatigue cracking, such as surface irregularities or hairline cracks.
  • Nondestructive testing (NDT): Technologies like Ground Penetrating Radar (GPR) or Falling Weight deflectometer (FWD) can assess pavement conditions without causing damage.
  • Monitoring traffic loads: Keeping track of traffic patterns and load intensities can help predict potential cracking risks.
  • Environmental analysis: Understanding the impact of local weather conditions and drainage systems on pavement performance aids in early detection.

Impact of fatigue cracking on pavement life

Fatigue cracking significantly reduces the functional life of pavements. It compromises load-bearing capacity, increases maintenance costs, and accelerates overall degradation. Cracked pavements are more susceptible to water infiltration, which weakens the base layers and exacerbates the problem.

Advanced methods to prevent fatigue cracking

  • Improved material selection: Choosing durable materials with high fatigue resistance is critical. For asphalt pavements, modified binders and polymer additives can enhance flexibility and reduce cracking risks.
  • Optimal design techniques: Pavement designs incorporating thicker layers or reinforced bases are better equipped to handle traffic-induced stresses.
  • Use of geosynthetics: Geosynthetics, such as geogrids or geotextiles, can reinforce pavements and prevent crack propagation by distributing loads more evenly.
  • Climate-adaptive pavement solutions: In regions with extreme temperature fluctuations, climate-adaptive materials and designs ensure longer pavement life.
  • Regular maintenance programs: Timely maintenance activities like seal coating, resurfacing, and minor repairs help prevent cracks from worsening.

Repairing fatigue cracking

Different ways can be used for repairing cracked pavements depending on their nature and extent;

  • Crack sealing and filling: Sealing or filling is effective where cracks are small and need not progress further.
  • Overlay: The application of a new asphalt layer helps restore integrity by enhancing smoothness over surfaces affected by cracks.
  • Full-depth repair: In severe cases damaged layers may have to be removed altogether before being replaced to bring back normality in terms of functionality.
  • Patch: Pothole patching is a quick fix for immediate hazards but may not be a permanent solution.

How does traffic intensity influence fatigue cracking?

High-traffic roads experience accelerated fatigue cracking due to constant loading and unloading. The weight of vehicles, particularly heavy trucks, plays a significant role in crack initiation and propagation.

Cost implications of ignoring fatigue cracking

Neglecting fatigue cracking can result in substantial economic losses. Repair costs increase exponentially as cracks progress from minor defects to full-depth failures. Moreover, poor road conditions lead to vehicle damage and higher accident risks, imposing additional societal costs.

Fatigue cracking is a critical issue in pavement engineering that demands proactive measures to ensure road durability and safety. By understanding its causes, types, and repair methods, engineers and policymakers can implement effective strategies to extend pavement life and reduce repair costs. Regular maintenance, advanced materials, and innovative designs are key to mitigating the impact of fatigue cracking.
