Flexural rigidity

What does flexural rigidity mean?

Flexural rigidity is the ability of a material to resist bending under an external force. In civil engineering, it is one of the critical parameters that influence the way structural elements such as beams, slabs, and planks respond to applied loads. The formula for flexural rigidity is obtained by multiplying the modulus of elasticity (E) of the material with the moment of inertia (I) of its cross-section:

Flexural rigidity = E × I

Materials such as steel and reinforced concrete exhibit high flexural rigidity, which allows them to endure considerable bending moments without experiencing significant deformation. These characteristics render them particularly suitable for essential infrastructure, including bridges, buildings, and highways, where strength and durability are of paramount importance.

Why is flexural rigidity important in civil engineering?

Flexural rigidity is an important aspect in the design and construction of load-bearing structures. It ensures that structural components of buildings can be subjected to loads applied without having considerable deformation while keeping them safe and functional.

Ensuring structural stability

Flexural rigidity is the main cause for structural stability. For example, the structural framework of a bridge is needed to have beams and girders of high flexural rigidity because of the dynamic loads arising due to traffic and environmental factors. Tall buildings use material that has high rigidity due to wind loads and seismic forces.

Preventing structural failure

Premature failure or collapse will be caused by the wrong estimation of flexural rigidity. To illustrate, should a beam possess insufficient rigidity, it may bend excessively under load and eventually collapse or crack catastrophically. Thus, to ensure safety and operational integrity throughout their designed lifespan, it is significant to calculate flexural rigidity accurately.

Supporting long spans and heavy loads

The need for flexural rigidity is very critical in structures such as cantilever bridges, where components must carry long spans and heavy loads without considerable deflection. Materials with high rigidity minimize the maintenance needs and improve durability.

How is flexural rigidity calculated?

Flexural rigidity is expressed as the product of Young’s modulus (E) and the moment of inertia (I):

 EI = E × I

Understanding the components

  • Young’s modulus (E): This measures the stiffness of a material and its ability to deform elastically under load. It is typically expressed in Pascals (Pa).
  • Moment of inertia (I): This quantifies how the material’s cross-sectional area is distributed about the axis of bending. It is expressed in m4 and determines the material’s resistance to bending.

Tools used for flexural rigidity calculations

This is done using material testing machines for Young’s modulus and also with the help of geometric calculations or some software application like CAD tool for calculation of moment of inertia.

What does high flexural rigidity mean in construction?

A high flexural rigidity means that a material or structural member has the ability to resist considerable bending forces without significant deformation. This attribute is important in maintaining stability in structures and ensures their efficient performance when exposed to heavy or dynamic loads.

Applications of high flexural rigidity:

  • Bridge construction: High flexural rigidity materials, such as steel-reinforced concrete, are significant for being used in the construction of bridges to be subjected to vehicular and pedestrian loads while not yielding to environmental factors.
  • High-rise buildings: Skyscrapers and tall structures rely on significant rigidity to minimize sway and ensure stability against lateral forces such as wind and earthquakes.
  • Industrial applications: Beams and structural members within factories or warehouses require considerable flexural rigidity in order to resist heavy machinery and operational loads.

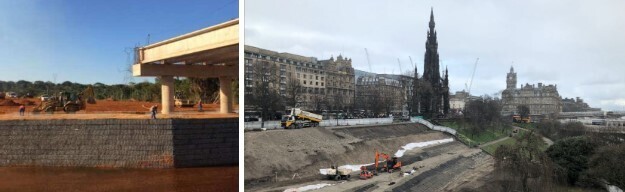

Application of high flexural rigidity on bridges and skyscrapers
Application of high flexural rigidity on bridges and skyscrapers

Advantages of high flexural rigidity:

  • Increased load-bearing capacity
  • Enhanced structural durability and lifespan
  • Reduced risk of failure under dynamic or extreme conditions

Factors affecting flexural rigidity

The flexural rigidity of materials and elements varies upon a number of factors. An engineer must be aware of these parameters to design safe and durable structures.

  • Material type: More rigid materials like steel or concrete have a higher Young’s modulus and thus higher flexural rigidity. More elastic materials have a lower rigidity like wood or plastic, which readily bend.
  • Cross-sectional shape: The moment of inertia, symbolized as II, depends on the shape and distribution of the cross-section of the material. Rectangular, circular, and I-beam shapes vary in their resistance to bending, with the best shapes producing increased rigidity.
  • Loading conditions: The type and magnitude of load applied, therefore, greatly influence how the structure achieves flexural rigidity. For instance, point loads produce different bending stresses than uniformly distributed loads do.
  • Temperature and environmental factors: Thermal expansion, along with environmental conditions such as moisture, can significantly influence a material’s modulus of elasticity, thereby affecting its flexural rigidity over time.

Practical implications of flexural rigidity in design

More than a theoretical concept, the direct implications to real-world construction projects demonstrate the flexural rigidity of a beam.

  • Designing beams and slabs: When designing beams and slabs, engineers calculate flexural rigidity to ensure these components can handle the expected loads without significant deflection. For example, in multi-story buildings, floor slabs must exhibit adequate rigidity to prevent sagging and maintain even load distribution.
  • Strengthening existing structures: Flexural rigidity further aids in the retrofitting or strengthening of old structures. Engineers often use fiber-reinforced polymers or steel plates to enhance the rigidity of beams and columns, in turn ensuring that they comply with contemporary load requirements.
  • Optimizing material use: By understanding flexural rigidity, engineers can maximize the usage of materials. This can reduce costs while not compromising on safety. For example, lightweight concrete with additives can provide the necessary rigidity without using too much material.

Flexural rigidity is one of the most basic properties in civil engineering, and it directly affects structural safety, stability, and lifetime. From designing bridges or high-rise buildings to industrial and commercial facilities, understanding and optimizing flexural rigidity is essential for reliable functioning under all load conditions, which nowadays can be achieved with the help of advanced materials and computational tools as well.
