Geocomposite

What is a geocomposite: definition, types, uses and materials

Geocomposites is defined as a combination of two or more geosynthetic products, used for specific applications in civil engineering. Geocomposites can be made by pairing products such as geonets, geomembranes, geogrids, or geotextiles. They are designed to solve specific geotechnical challenges with soil terrains, or topographical situations. For example, a combination of a geonet and geotextile at Strata Geosystems is manufactured at our plants. This particular product called StrataDrain is a composite product used for landfill, mining, and civil works. It is a drainage composite comprised of HDPE geonet core laminated with non-woven geotextiles, on one or both sides.

Geocomposites serve four key uses: separation, drainage, reinforcement, and filtration. Geocomposites can be used either horizontally, or vertically, based on the application type. The most common variant is geonets bonded with geotextiles. When used horizontally, they are a popular choice for leachate collection in landfills, or for reinforcement, and separation on paved highways.

This category of geocomposite is preferred in embankments constructed over soft soils where water drainage is an important consideration because of its strong planar drainage capability. When added as a layer between the subsoil and subgrade, this layer of geocomposite serves as both a separator and drainage system, preventing the subgrade from becoming contaminated with fine-grained subsoil. It also reduces excess pore water pressure, improving the embankment’s stability, and creates an even distribution of load over the subsoil. Thanks to its thickness, it also mitigates the need for sand which is helpful in geographies where the local sand may be suboptimal in quality, by working as a sandwich layer. In other instances such as slope wall reinforcement, due to its ability to drain water, it can aid with draining water away from the wall, when placed behind a retention wall, vertically as a drainage layer so that water is flowing towards or away from the wall.

What are some common industrial applications of geocomposites?

Geocomposites find extensive use across a variety of industries, primarily in civil engineering, environmental engineering, and construction. Here are some of their most common applications:

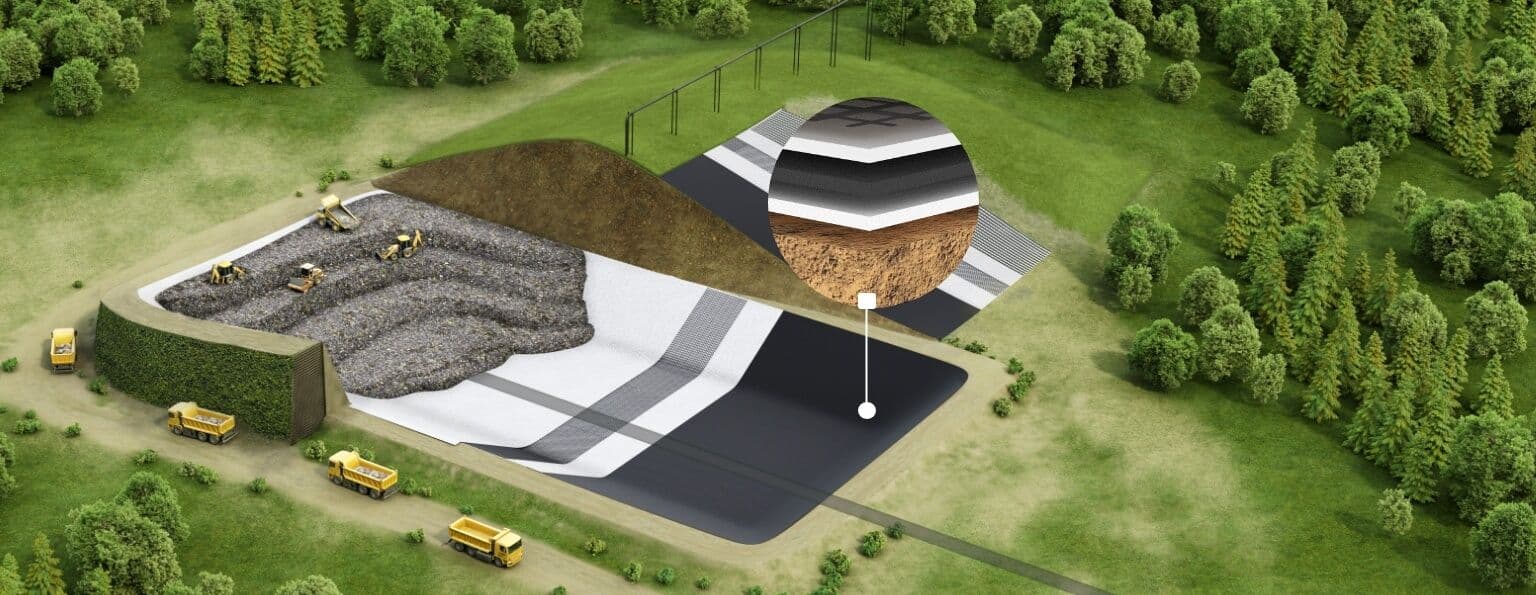

  1. Landfills and waste containment: Geocomposites play a critical role in landfill construction, particularly in leachate collection and containment. A geonet-geotextile composite is used to facilitate drainage while ensuring the separation of waste layers. The geotextile component filters fine particles, while the geonet provides a channel for leachate flow, preventing contamination of surrounding soil and groundwater.
  2. Road construction and highways: Geocomposites are widely used in road construction for drainage and reinforcement purposes. They prevent the mixing of subsoil with the aggregate base, maintaining the structural integrity of the road. Additionally, geocomposites enhance drainage in highway shoulders, reducing the risk of pavement damage due to water accumulation.
  3. Slope stabilization: For embankments and slopes, geocomposites are used as reinforcement materials to improve stability and prevent erosion. By draining excess water away, they reduce pore water pressure and improve soil shear strength, which is vital for preventing landslides or slope failures.
  4. Tunnels and underground structures: Geocomposites provide effective waterproofing and drainage solutions in tunnel construction. A geocomposite drainage system directs groundwater away from the tunnel structure, preventing seepage, corrosion, and damage to concrete linings.
  5. Retaining walls: Vertical geocomposite drainage layers are often installed behind retaining walls to manage hydrostatic pressure. The geocomposite efficiently channels water away from the structure, improving its stability and reducing maintenance costs.
  6. Mining operations: In mining, geocomposites are used for tailings storage facilities and drainage systems. They help collect and channel seepage, ensuring safe and environmentally compliant operations.
  7. Green roofs: Geocomposites are also used in green roof systems to manage water drainage and provide separation between soil and waterproof membranes. This ensures proper plant growth while protecting the roof structure.

Materials used in manufacturing geocomposites

The performance and durability of geocomposites depend largely on the materials used in their construction. Some of the most common materials include:

  1. High-density polyethylene (HDPE): HDPE is frequently used as the core material in geocomposites, especially for drainage applications. Its high strength, chemical resistance, and durability make it ideal for challenging environments like landfills and mining sites.
  2. Polypropylene (PP): Non-woven geotextiles made from polypropylene are commonly combined with other materials to enhance filtration and separation properties. Polypropylene’s lightweight nature and resistance to chemical and biological degradation make it suitable for geotechnical applications.
  3. Polyester (PET): Polyester-based geotextiles are often used in geocomposites where tensile strength and long-term durability are crucial. They are resistant to UV radiation and can withstand high stresses, making them suitable for reinforcement applications.
  4. Geomembranes: Geomembranes, typically made of HDPE or other polymer materials, are often used in geocomposites for waterproofing and containment. They form an impermeable barrier that prevents fluid migration.
  5. Geonets: Geonets are crucial in drainage geocomposites due to their high flow capacity. Their rigid, grid-like structure ensures effective water or gas channeling.

Benefits of using geocomposites

Geocomposites offer numerous advantages over traditional materials in civil and geotechnical engineering applications. Some of their key benefits include:

  1. Cost-efficiency: By reducing the need for natural materials like sand or gravel, geocomposites lower construction costs. Their lightweight design also reduces transportation and installation expenses.
  2. Enhanced performance: Geocomposites are engineered to deliver superior functionality, such as effective drainage, filtration, and reinforcement, ensuring the long-term stability of structures.
  3. Ease of installation: Pre-assembled geocomposites are easy to transport and install, saving time during construction. Their flexible design allows for quick adaptation to project requirements.
  4. Environmental sustainability: Geocomposites reduce the reliance on natural resources and minimize waste generation during construction. Additionally, they are recyclable and compatible with eco-friendly construction practices.

How to select the right geocomposite for your project?

Choosing the correct geocomposite depends on factors such as the project requirements, site conditions, and application type. Here are some key considerations:



  • Functionality: Determine the primary function of the geocomposite—whether it is for drainage, reinforcement, separation, or filtration.
  • Material compatibility: Ensure that the materials used in the geocomposite are compatible with the environmental and chemical conditions of the project site.
  • Load-bearing capacity: For applications like road construction and embankment reinforcement, select a geocomposite with adequate tensile strength and load distribution capabilities.
  • Drainage efficiency: In applications requiring drainage, choose a geocomposite with a high flow rate to handle water or gas movement effectively.
  • Durability: Opt for geocomposites that can withstand environmental factors such as UV radiation, chemical exposure, and biological activity for long-term performance.



When selecting the right geocomposite for your project, it is essential to partner with a trusted and experienced provider. Strata Global, a leader in geosynthetic solutions, offers cutting-edge geocomposites designed to meet diverse engineering challenges. With a proven track record in delivering high-performance products, we ensure that every solution is tailored to optimize project outcomes. One of Strata’s premier geocomposite solutions is StrataDrainTM, a versatile product engineered for exceptional drainage and filtration capabilities.

StrataDrain™ is best used in:

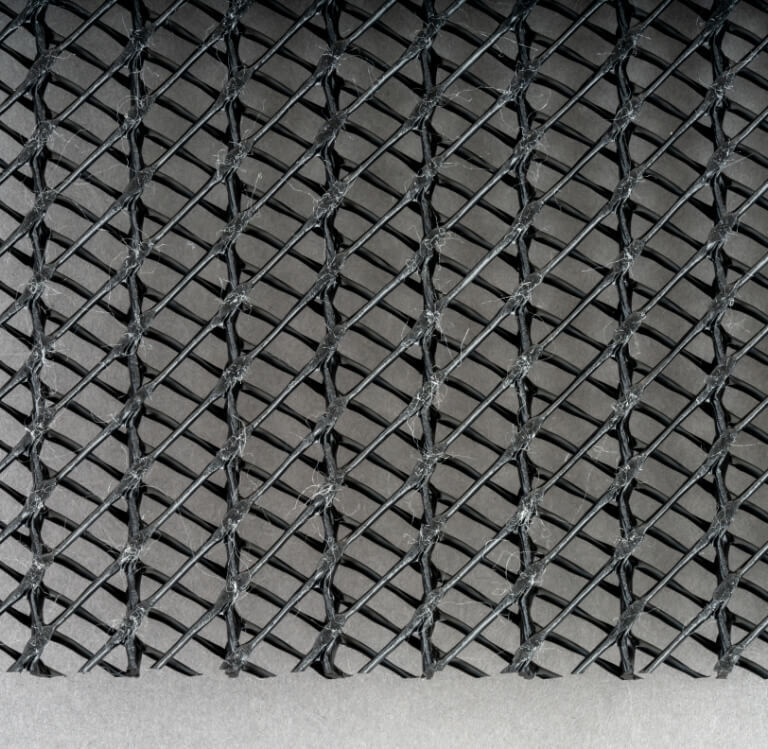

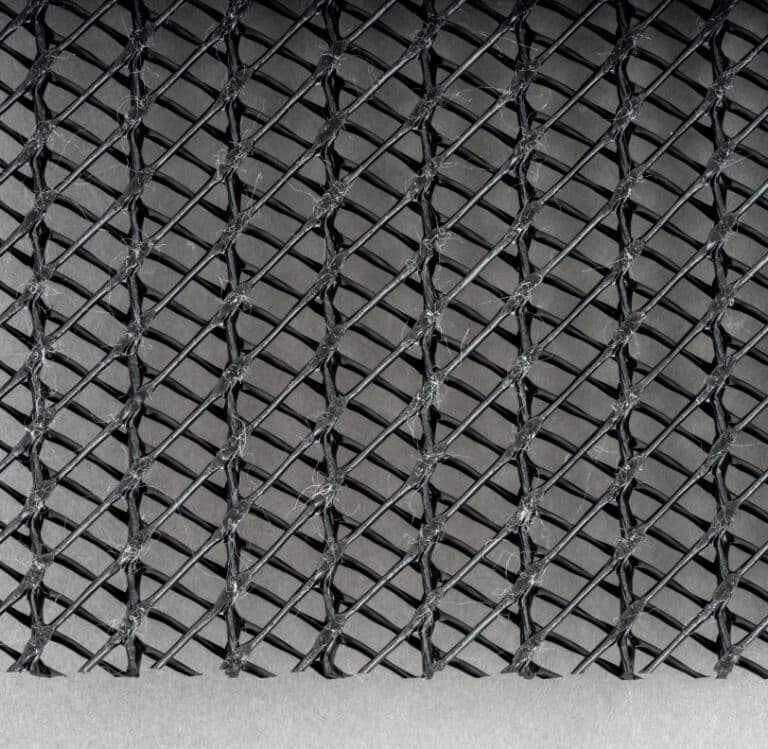

StrataDrain is a composite geosynthetic solution combining a high-density polyethylene (HDPE) geonet core with non-woven geotextiles on one or both sides. This innovative design makes it the ideal choice for applications such as:

  • Landfills: Efficiently channels leachate and reduces hydrostatic pressure to maintain the stability of waste containment systems.
  • Road construction: Acts as a separator and drainage layer, preventing subgrade contamination and ensuring long-term pavement performance.
  • Retaining walls and slopes: Enhances slope stability by reducing pore water pressure and directing water flow away from structures.
  • Mining operations: Provides reliable drainage in tailings storage facilities and seepage control.

Why choose StrataDrain™ geocomposite by Strata Global?

  • Exceptional drainage efficiency: StrataDrain’s high-flow HDPE geonet core ensures quick and reliable water or gas movement, making it suitable for even the most challenging environments.
  • Durability and chemical resistance: Engineered from premium-quality materials, StrataDrain resists chemical exposure, UV radiation, and biological degradation, ensuring long-lasting performance.
  • Ease of installation: It’s lightweight and flexible design makes installation faster and more cost-effective compared to traditional solutions.
  • Proven performance: Trusted by engineers globally, StrataDrain has been successfully used in numerous infrastructure and environmental projects, delivering superior results every time.

Strata Global’s commitment to innovation, sustainability, and quality makes it the go-to partner for geocomposite solutions. Whether your project involves road construction, waste management, or slope stabilization, StrataDrain is engineered to provide unparalleled performance and reliability. Visit Strata Global today to learn more about StrataDrain and explore how our geocomposite solutions can elevate the success of your next project.
