Prefabricated Vertical Drain

Introducing Prefabricated Vertical Drains marked a pivotal advancement in ground improvement techniques, particularly in large-scale construction practices for drainage systems where traditional methods proved inefficient and costly. The notable adoption of PVD technology across diverse engineering sectors, including infrastructure development, land reclamation, and mining, underscores their importance in modern geotechnical engineering. These vertical drains are typically constructed from a durable plastic which is effective for long-term performance of soil properties and drainage solutions.

What are Prefabricated Vertical Drains (PVD) in civil engineering?

Prefabricated vertical drains (PVDs) are an essential innovation in civil engineering, primarily utilized for ground improvement in areas with compressible soils. They function by accelerating the drainage of pore water from saturated soils, significantly reducing consolidation times from years to mere months. It is highly preferred in soft clay conditions for stabilisation.

What are the Key characteristics of PVDs?

Prefabricated Vertical Drains (PVDs), commonly known as wick drains, come in various forms tailored for specific soil conditions and drainage systems. They offer characteristics such as:

  • High permeability: PVDs consist of a durable plastic core wrapped in geosynthetic fabric. For various soft soils like clay and slits, they act as a core that facilitates water flow, while the fabric prevents soil particles from clogging the drain.
  • Durability: One of the standout features of PVD coatings is their wear resistance and excellent hardness. This is crucial and beneficial for cutting tools such as drill bits and end mills, where the coating significantly increases tool longevity and soil stabilisation.
  • Modular design: The equipment utilized for installing PVDs in construction projects includes specialized hydraulic rigs designed to accommodate various soil conditions for groundwater management in construction, from soft soils to more resistant materials. Their modular design also allows for quick installation, flexibility and easy maintenance and replacement.
Prefabricated Vertical Drain [PVD]
Prefabricated Vertical Drain [PVD]

What are the Benefits of using PVDs in civil engineering?

Prefabricated vertical drains (PVDs) are an essential innovation in civil engineering, primarily utilized for ground improvement in areas with compressible soils. They function by accelerating the drainage of pore water from saturated soils, significantly reducing consolidation times from years to mere months. It is highly preferred in soft clay conditions for stabilisation.

What are the Key characteristics of PVDs?

  • Accelerated consolidation: One of the primary advantages of PVDs is their ability to expedite the consolidation process of stabilizing weak soils. In scenarios where ground improvement is a concern, traditional consolidation methods may take years to achieve the desired results.
  • Improved load-bearing capacity: The usage of geosynthetic materials  in PVDs aid in better water management by enhancing drainage capabilities, which helps maintain the stability of structures and reduces the likelihood of flooding.

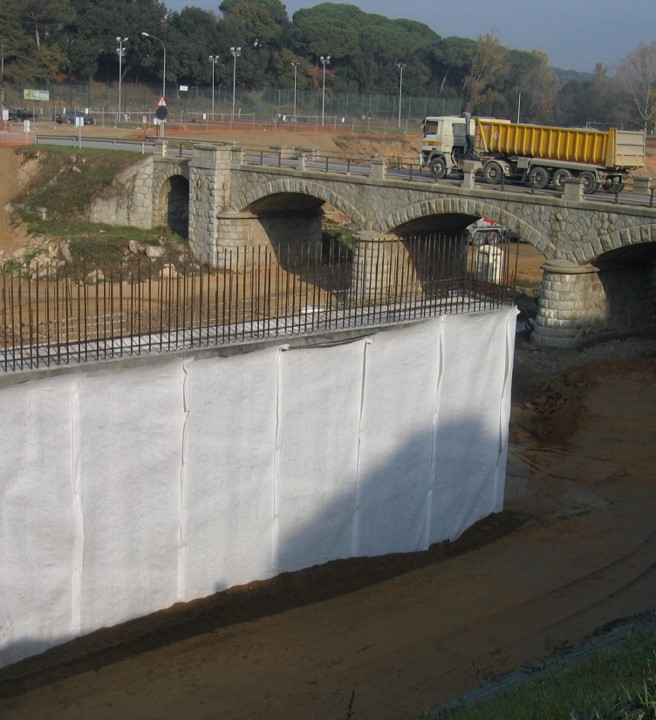

Vertical drainage solution by Strata Global
Vertical drainage solution by Strata Global
  • Cost-effectiveness: The use of Prefabricated Vertical Drains (PVDs) significantly reduces construction costs by mitigating the need for expensive deep foundation systems or extensive soil replacement.
  • Versatility in applications: PVD design considerations for construction engineers can be adapted to a variety of soil types and project requirements. Their installation techniques are flexible, with equipment designed to handle depths ranging from 3 to over 60 metres, making them suitable for diverse applications.
  • Land reclamation: PVDs improve the mechanical properties of soil by facilitating drainage, accelerate the consolidation process of reclaimed soil and reduce pore water pressure. This enhancement allows for a more stable ground condition.
  • Soft ground construction: In soft, compressible soils, PVDs increase the shear strength and settlement characteristics of the soil, allowing a more reliable construction of pavements and other structures.
  • Dewatering operations: PVDs improve dewatering efficiency in soft ground, enabling faster drainage of excess water and thereby reducing the risk of flooding.
  • High permeability: PVDs consist of a durable plastic core wrapped in geosynthetic fabric. For various soft soils like clay and slits, they act as a core that facilitates water flow, while the fabric prevents soil particles from clogging the drain.
  • Durability: One of the standout features of PVD coatings is their wear resistance and excellent hardness. This is crucial and beneficial for cutting tools such as drill bits and end mills, where the coating significantly increases tool longevity and soil stabilisation.
  • Modular design: The equipment utilized for installing PVDs in construction projects includes specialized hydraulic rigs designed to accommodate various soil conditions for groundwater management in construction, from soft soils to more resistant materials. Their modular design also allows for quick installation, flexibility and easy maintenance and replacement.

Installation process of prefabricated Vertical Drains

The installation process of PVDS involves some steps to ensure their effectiveness in accelerating the soil consolidation and load bearing capacity of the soft-soil embankments. They are,

  • Site preparation: PVD systems must be appropriately sized based on factors such as catchment area and soil permeability. Performance criteria should be established to address maximum allowable discharge rates and pollutant removal efficiency. Any vegetation, debris or other obstacles are removed and ensured that the area is properly levelled and graded.
  • PVD installation: The installation of PVDs typically employs an improved mandrel system, which enhances the efficiency and effectiveness of the drainage process. This method involves the careful insertion of PVDs into the soil using specialized equipment that ensures minimal disturbance and optimal alignment. For deeper installations, an auger is used to create a hole into which the PVD is inserted.
  • Monitoring and maintenance: Frequent monitoring and maintenance are essential for the continued functionality of PVD systems. This includes periodic inspections to check for blockages, monitor the condition of vegetation, and assess the integrity of the drainage infrastructure. Settlement plates, inclinometers, piezometers etc are widely used to ensure the effectiveness of PVDs.

Why evaluating the performance of PVDs in geotechnical projects is important?

Assessing the performance of PVDs regularly helps in ascertaining the stability of soil and drainage qualities, so the following factors are evaluated:

  • Monitoring settlement: To assess PVD performance, the rate of consolidation and the efficiency of pore water dissipation must be tracked. Advanced modelling tools, such as PLAXIS 3D, make it possible to analyse soil behaviour under various loads and circumstances and simulate staged structures.
  • Pore pressure measurement: When assessing the effectiveness of Prefabricated Vertical Drains (PVDs) in geotechnical projects, this analysis is an essential technique. It enables engineers to evaluate the PVDs’ efficiency in ground improvement and promoting soil consolidation.
  • Field observation: Before the installation of PVDs, a comprehensive soil investigation is imperative. Engineers use techniques like standard penetration tests (SPT) and borehole sampling to understand the soil profile, characteristics, and behaviour under different loads.

To sum up, prefabricated Vertical Drains are a major advancement in drainage solutions for civil engineering since they efficiently solve problems with soil consolidation, enhance the ground, and shorten building schedules. As their application continues to evolve, ongoing research and development efforts aim to enhance their design, installation, and overall efficacy in various geotechnical scenarios.
