Overview of StrataWall™
Build Strong Foundation of Soil Structures using StrataWall™

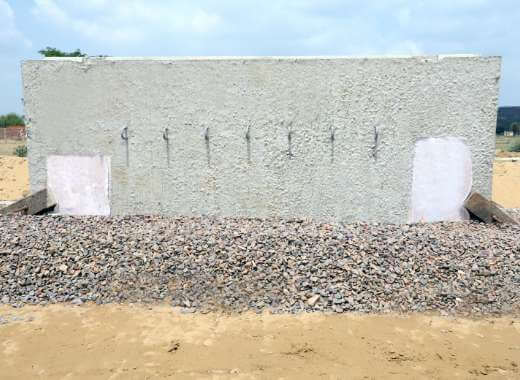

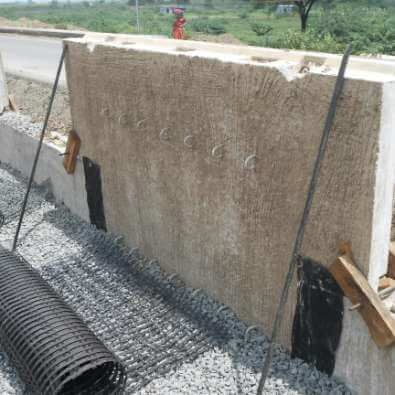

StrataWall™ is a precast concrete panel wall fascia for a reinforced soil structure. StrataWall™ is designed to give a positive connection with StrataGrid™ geogrids as a reinforcing material. The reinforced soil structure is a composite mass of non-plastic soil that is reinforced with StrataGrid™ geogrids. StrataWall™ panels are either T-shaped or square shaped with a thickness of 180 mm. It comes with a plain face or embellishment on the outer face.
The StrataWall™ system is a cost effective alternative to reinforced structure with steel reinforcements or conventional reinforced cement concrete retaining walls and ideal for walls of great height. StrataWall™ are placed with a slight inward batter and are wet cast with M30 grade of concrete using Fe 500 reinforcement cage to tackle various handling & design stresses. The StrataWall™ panels are precast close the project site for ease of logistics and faster construction. Strata provides innovative systems and technology that provide economic advantages while ensuring structural integrity and sound engineering principles.
Key advantages of StrataWall™
What makes our StrataWall™ unique?
- Significant cost savings compared to conventional RCC structures
- Tolerant of total or differential settlements
- Panels are designed for mechanized handling during shifting, transportation and erection
- Offers robust fascia due to positive connection
- Fast installation
- Minimal impact on environmental areas (i.e. wetlands, natural habitats)
- Excellent structural capacity
- The joints between panels are appropriately designed to allow free flow of water without migration of particles for backfill
What impact does our StrataWall™ create?
Environmental
Time-efficient
Economical

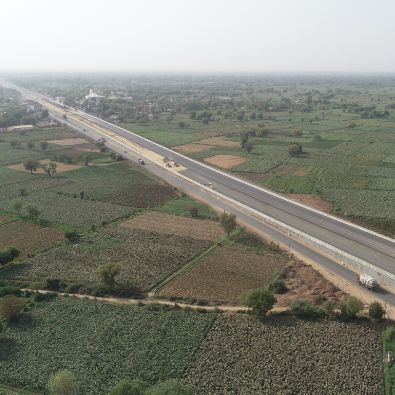

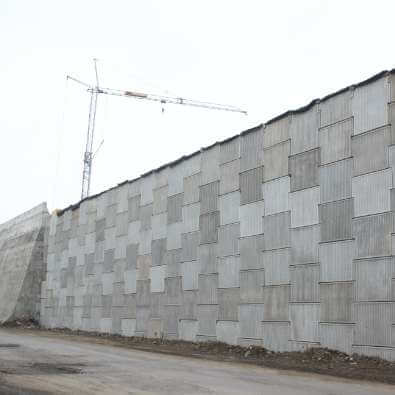

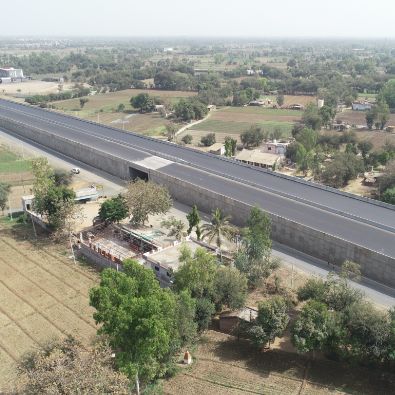

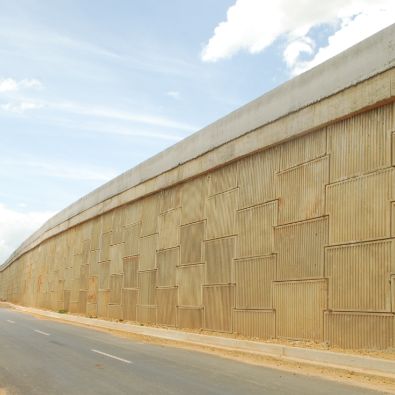

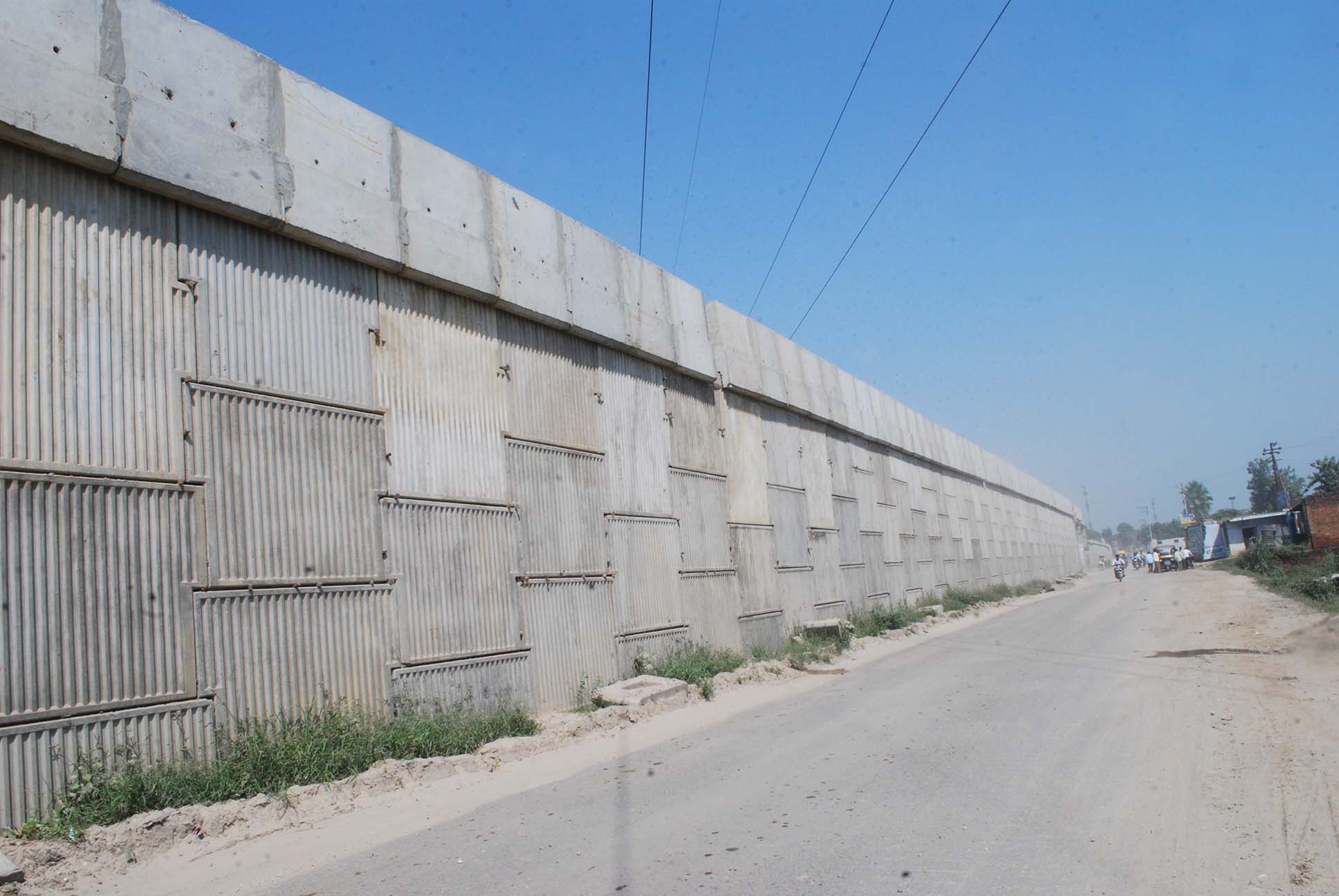

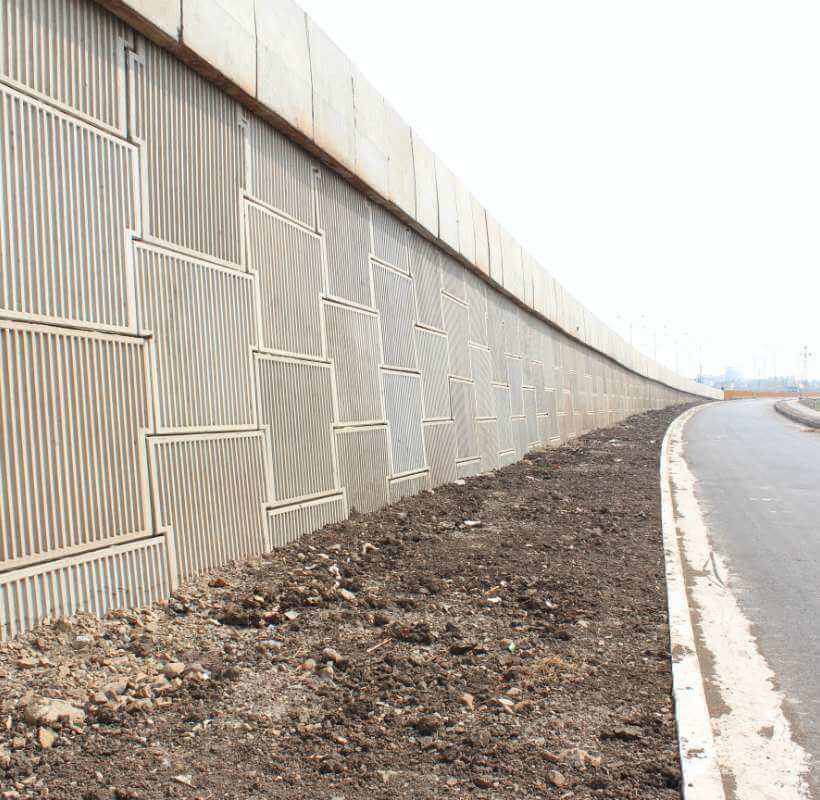

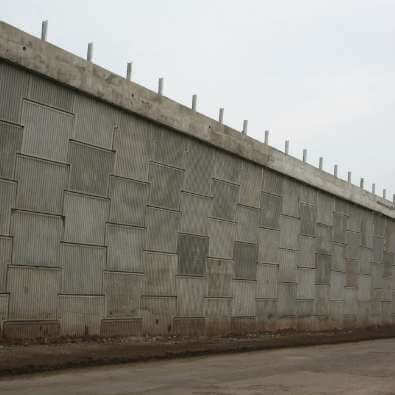

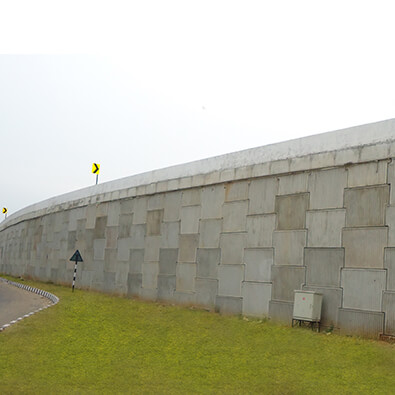

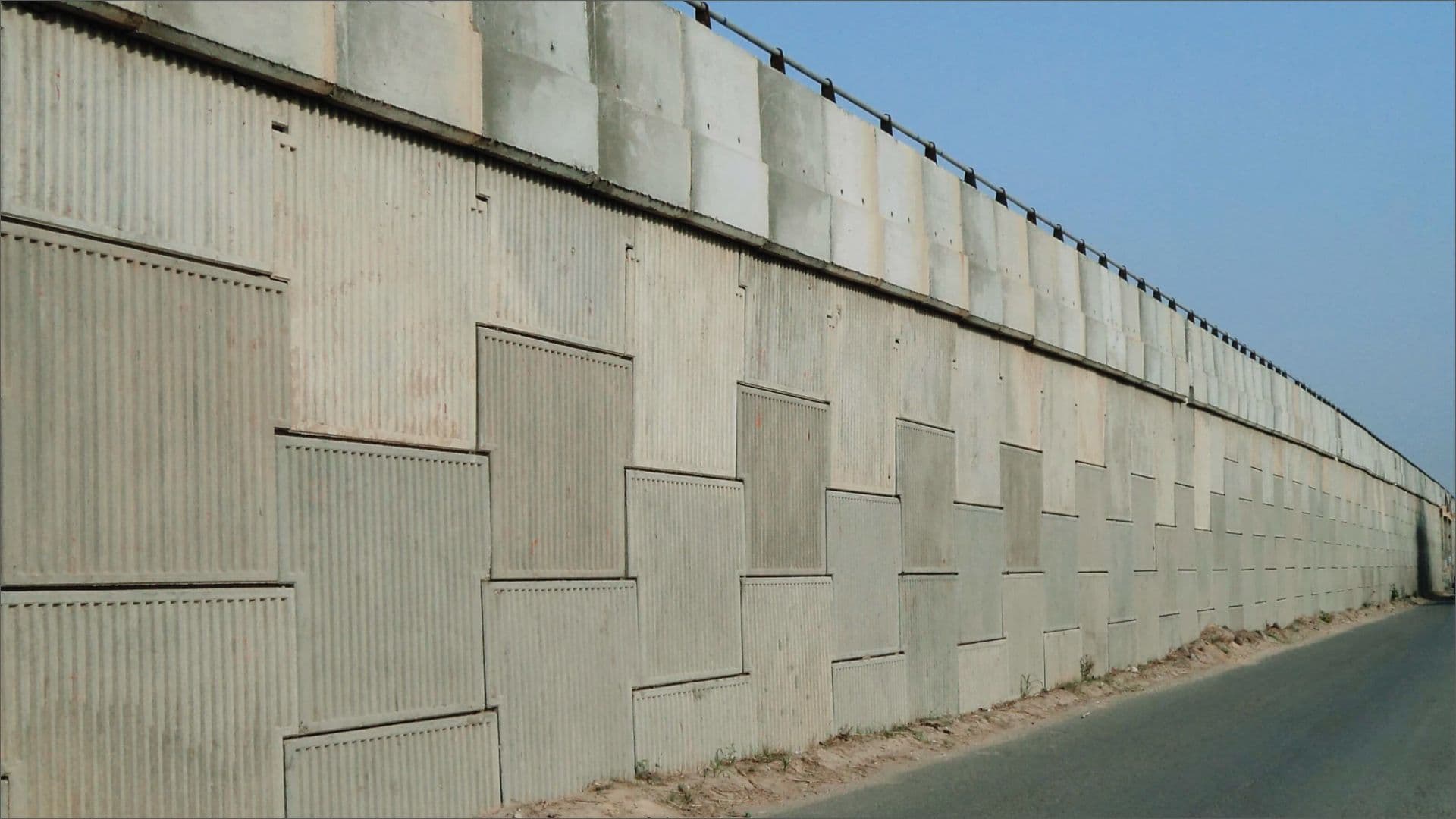

Gallery of StrataWall™ Projects
StrataWall™ System Showcased in Real Projects
Related Products for Seamless StrataWall™ Integration
Products used with StrataWall™ System
StrataWall™ is a precast concrete panel wall fascia for a reinforced soil structure, designed to give a positive connection with StrataGrid™ geogrids as a reinforcing material.
| StrataGrid™ (Geogrid)

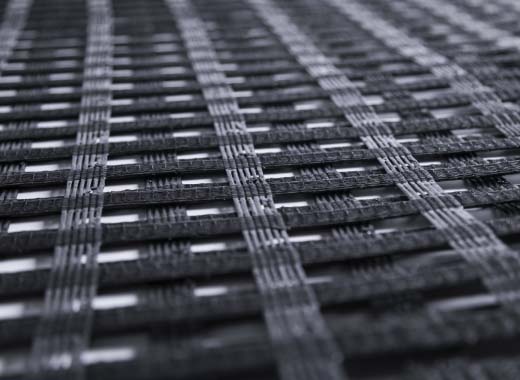

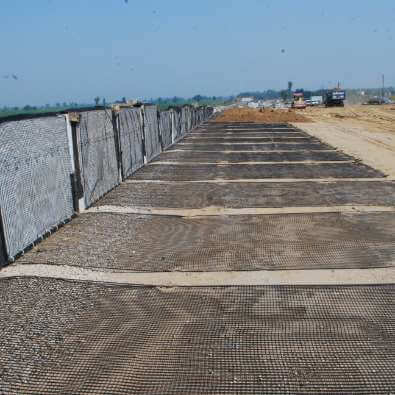

StrataGrid™ (geogrid) is a high performance soil reinforcement solution that is produced by knitting high-tenacity polyester yarn into a dimensionally-stable network of apertures to form a geometric grid.
| Strata Panel
The panels are the outermost face of the reinforced soil structure. Their primary objective is to protect the structure backfill material from erosion. Since the panels are essentially the exteriors of a reinforced soil system, they also required to serve an aesthetic purpose and these precast panels often have an embossed surface as per the client’s requirements. These panels can either be manufactured at a precast facility or cast at project site using metallic wooden moulds.
DOWNLOADS
Looking for a little more than light reading?
CONSULTATION
If you feel that StrataWall™ ably meets your needs, do speak to us
Strata not only provides geotechnical products, but our team of 200+ engineers can help you with your turnkey project by supplying you with technical knowhow and support as to how our products can help you finish your projects in time while keeping costs down.
Send us your queries and we will get back to you with our expertise.
