LOCATION
Kiarong, Brunei
Client
Public Works Department
Product used
StrataWeb® – SW 660-100
Application
Erosion control
About the project

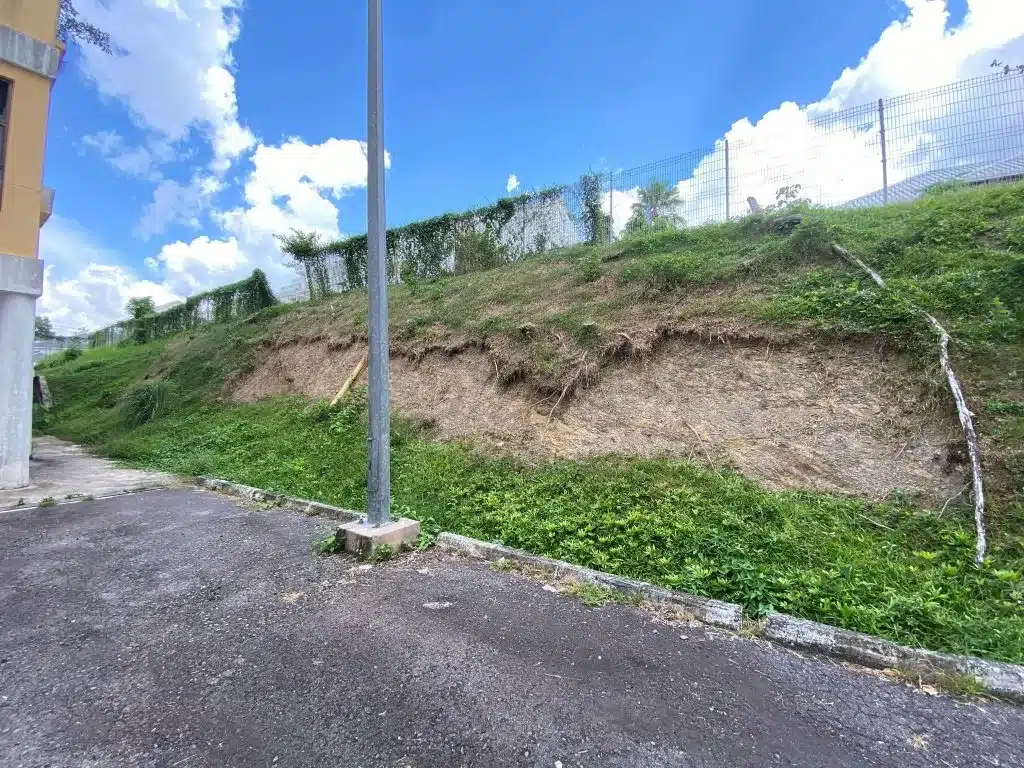

The Public Works Department, Brunei, had to provide a solution to manage the erosion and prevent further scouring of the slope at a building complex in Kiarong, a commercial area in Bandar Seri Begawan, the capital of Brunei.
Challenges included limited space between the existing fence and the building at the toe of the slope. Also, steep slope angle and curvature of the slope along the length.
StrataWeb® geocell slope erosion protection system along with StrataCord™ and StrataFast™ for efficient load transfer was recommended by the geotechnical experts at Strataand ATH Chevron. The style recommended for this project was SW 660-100, which was infilled with soil conducive to vegetation.

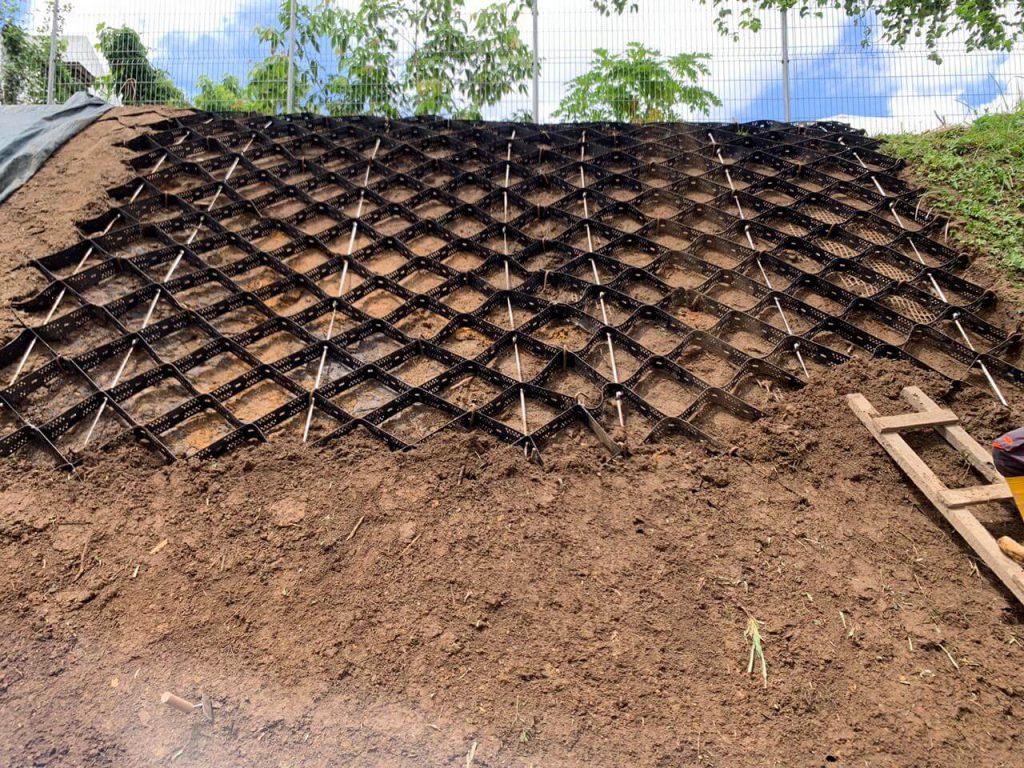

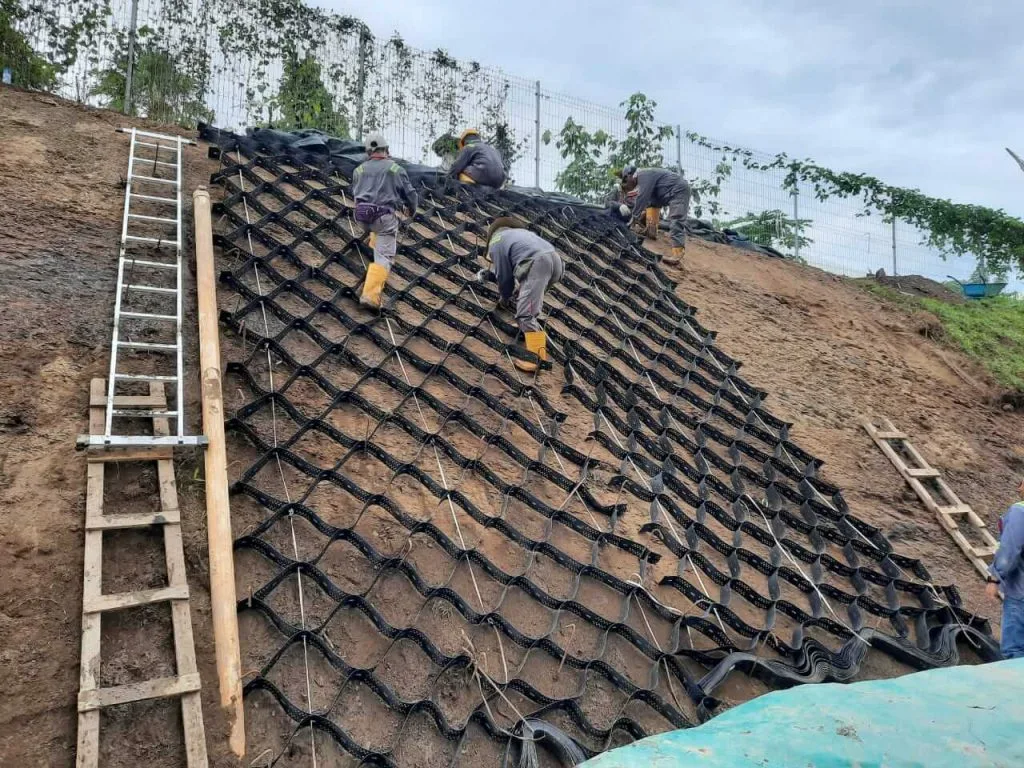

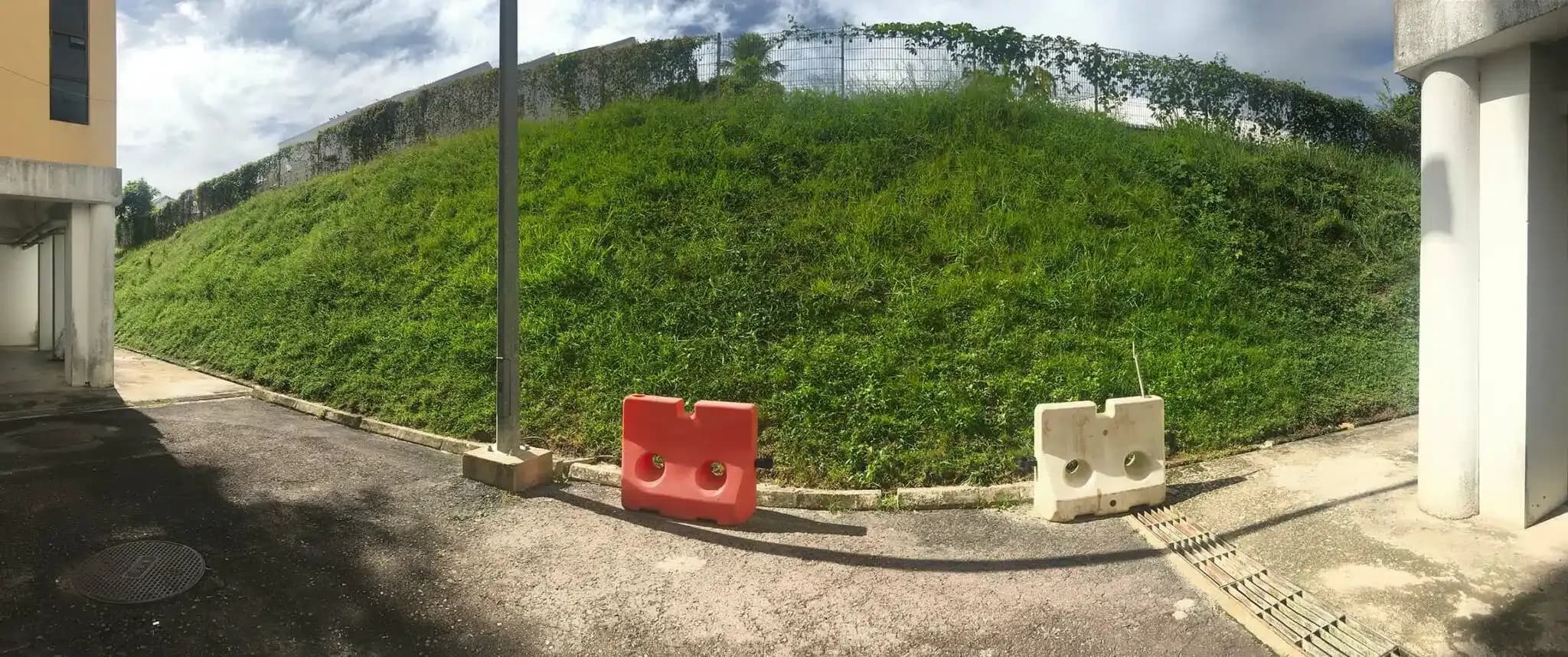

Due to its flexible structure, StrataWeb® geocells conform to the slope’s contour and are installed with ease in the curvatures along the length of the embankment. The perforations help in providing effective interlock of roots for the vegetation to nurture and sustain, thereby providing a visually pleasing green surface that also helps protect the surface from erosion.
The use of StrataWeb® was an innovative solution for construction to protect the topsoil and prevent erosion.

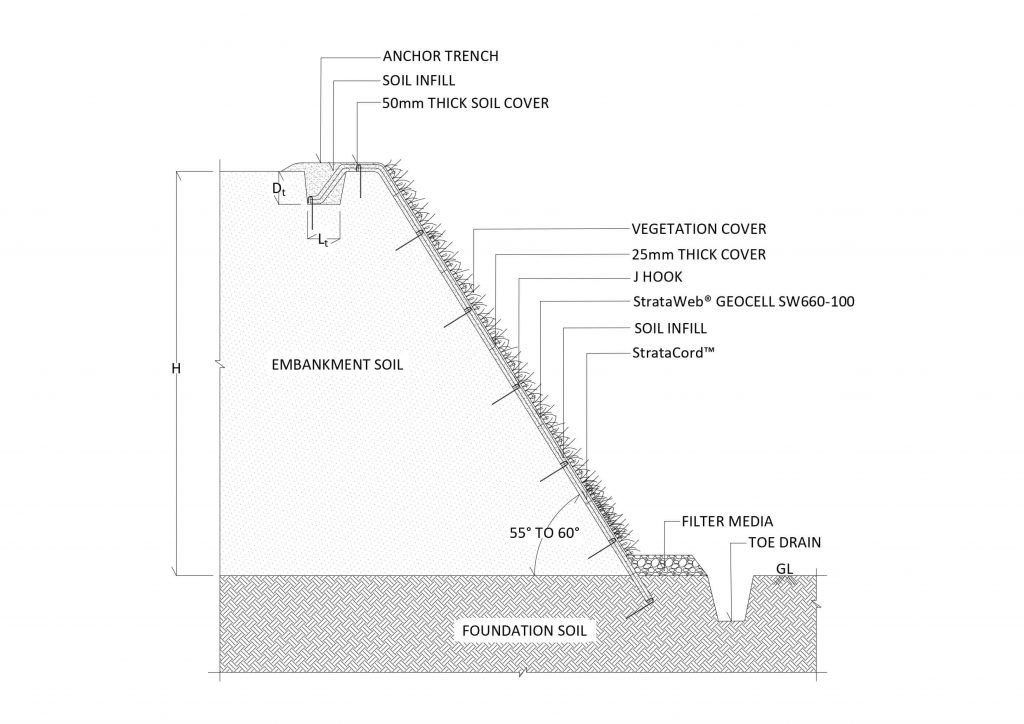

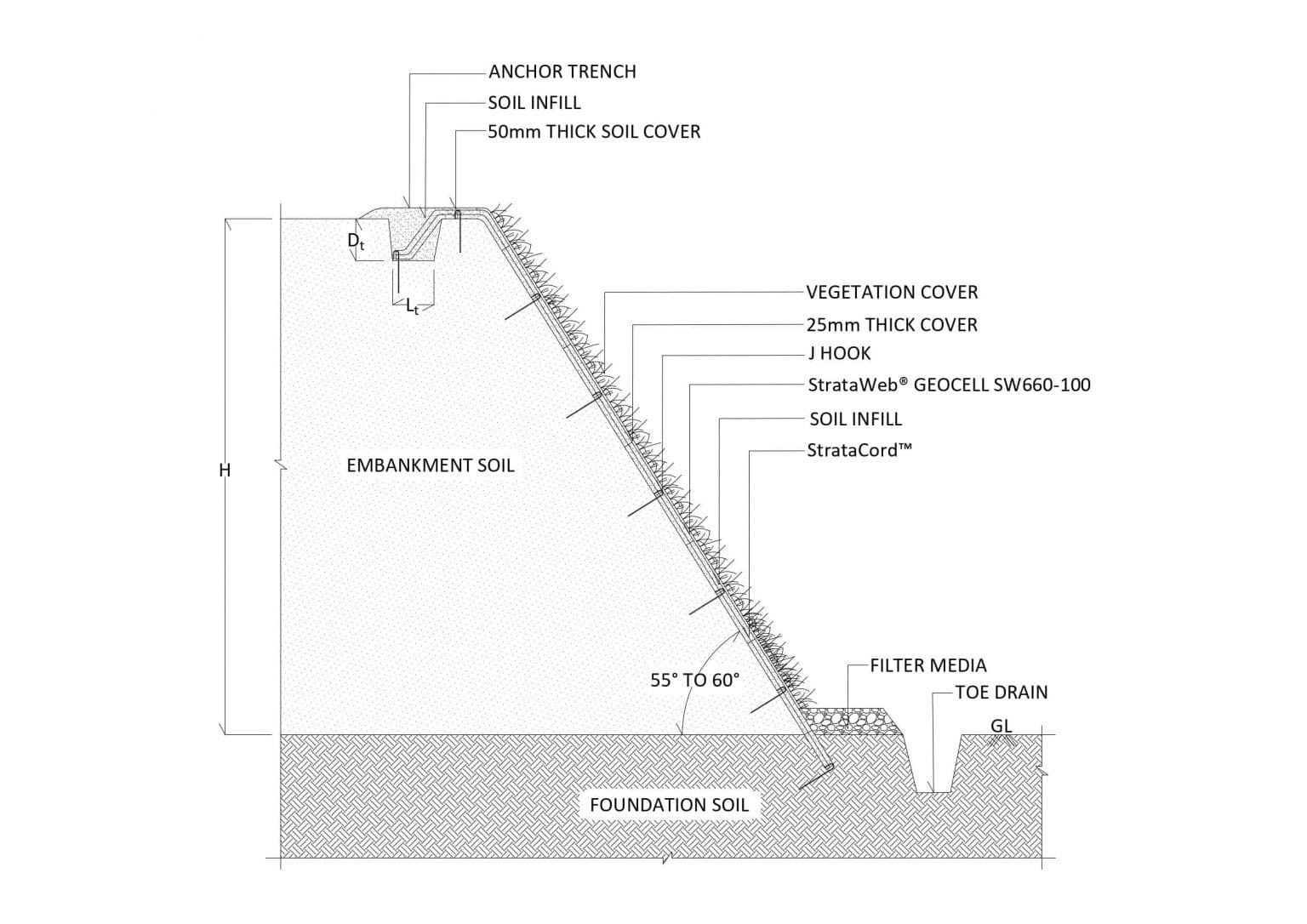

Technical drawing
CONSULTATION
From know-how to manufacture, installation
and support
Strata not only provides geotechnical products, but our team of 200+ engineers can help you with your turnkey project by supplying you with technical knowhow and support as to how our products can help you finish your projects in time while keeping costs down.
Send us your queries and we will get back to you with our expertise.
